Material: Carbon Steel A105, SS304L, SS316L Stainless Steel
Connection: RF, FF, RTJ
Ansi: 150#, 300#, 600#, 900#, 1500#, 2500#

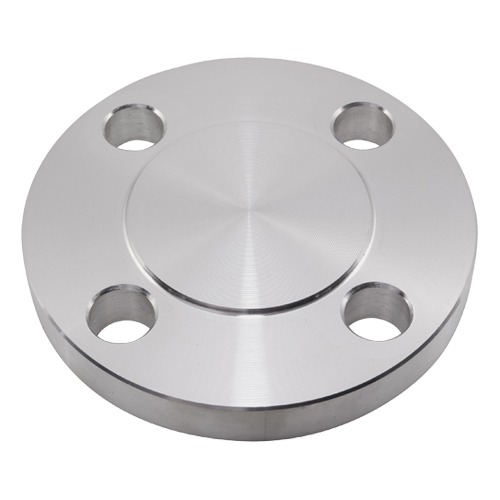

Jual Flange Blind
PT Karindo Abadi Makmur jual Flange Blind dengan harga murah dan berkualitas. Dapatkan penawaran harga terbaik untuk produk Flange Blind dengan menghubungi kontak marketing PT Karindo Abadi Makmur sekarang. Konsultasikan setiap kebutuhan Anda mengenai produk yang tersedia di website seperti Flange Blind dari harga, stok, ansi, material dan connection yang dibutuhkan.
| JIS 10 K FF BLIND | |||||||
| Size | Flange | Drilling | Weight | ||||
| mm | inch | D | T | K | Bolt No. | H | Kg / Pc |
| DN 15 | 1/2″ | 95 | 12 | 70 | 4 | 15 | 0,60 |
| DN 20 | 3/4″ | 100 | 14 | 75 | 4 | 15 | 0,79 |
| DN 25 | 1″ | 125 | 14 | 90 | 4 | 19 | 1,23 |
| DN 32 | 1-1/4″ | 135 | 16 | 100 | 4 | 19 | 1,66 |
| DN 40 | -1/2″ | 140 | 16 | 105 | 4 | 19 | 1,80 |
| DN 50 | 2″ | 155 | 16 | 120 | 4 | 19 | 2,24 |
| DN 65 | 2-1/2″ | 175 | 18 | 140 | 4 | 19 | 3,26 |
| DN 80 | 3″ | 185 | 18 | 150 | 8 | 19 | 3,50 |
| DN 100 | 4″ | 210 | 18 | 175 | 8 | 19 | 4,60 |
| DN 125 | 5″ | 250 | 20 | 210 | 8 | 23 | 7,23 |
| DN 150 | 6″ | 280 | 22 | 240 | 8 | 23 | 10,12 |
| DN 200 | 8″ | 330 | 22 | 290 | 12 | 23 | 13,99 |
| DN 250 | 10″ | 400 | 24 | 355 | 12 | 25 | 22,66 |
| DN 300 | 12″ | 445 | 24 | 400 | 16 | 25 | 27,98 |
| DN 350 | 14″ | 490 | 26 | 445 | 16 | 25 | 37,09 |
| DN 400 | 16″ | 560 | 28 | 510 | 16 | 27 | 52,42 |
| DN 450 | 18″ | 620 | 30 | 565 | 20 | 27 | 68,79 |
| DN 500 | 20″ | 675 | 30 | 620 | 20 | 27 | 82,03 |
| DN 550 | 22″ | 745 | 32 | 680 | 20 | 33 | 105,80 |
| DN 600 | 24″ | 795 | 32 | 730 | 24 | 33 | 120,21 |
| DIN 2501 PN 40 RF BLIND | |||||||
| Size | Flange | Drilling | Weight | ||||
| mm | inch | D | T | K | Bolt No. | H | Kg / Pc |
| DN 15 | 1/2″ | 95 | 16 | 65 | 4 | 14 | 0,74 |
| DN 20 | 3/4″ | 105 | 18 | 75 | 4 | 14 | 1,06 |
| DN 25 | 1″ | 115 | 18 | 85 | 4 | 14 | 1,29 |
| DN 32 | 1-1/4″ | 140 | 18 | 100 | 4 | 18 | 1,89 |
| DN 40 | 1-1/2″ | 150 | 18 | 110 | 4 | 18 | 2,12 |
| DN 50 | 2″ | 165 | 20 | 125 | 4 | 18 | 2,93 |
| DN 65 | 2-1/2″ | 185 | 22 | 145 | 8 | 18 | 4,00 |
| DN 80 | 3″ | 200 | 24 | 160 | 8 | 18 | 5,22 |
| DN 100 | 4″ | 235 | 24 | 190 | 8 | 22 | 7,17 |
| DN 125 | 5″ | 270 | 26 | 220 | 8 | 26 | 10,28 |
| DN 150 | 6″ | 300 | 28 | 250 | 8 | 26 | 14,00 |
| DN 200 | 8″ | 375 | 34 | 320 | 12 | 30 | 26,46 |
| DN 250 | 10″ | 450 | 38 | 385 | 12 | 33 | 43,32 |
| DN 300 | 12″ | 515 | 42 | 450 | 16 | 33 | 62,55 |
| DN 350 | 14″ | 580 | 46 | 510 | 16 | 36 | 87,56 |
| DN 400 | 16″ | 660 | 50 | 585 | 16 | 39 | 124,39 |
| DN 500 | 20″ | 755 | 56 | 670 | 20 | 42 | 181,78 |
| DIN 2501 PN 16 RF BLIND | |||||||
| Size | Flange | Drilling | Weight | ||||
| mm | inch | D | T | K | Bolt No. | H | Kg / Pc |
| DN 15 | 1/2″ | 95 | 14 | 65 | 4 | 14 | 0,64 |
| DN 20 | 3/4″ | 105 | 16 | 75 | 4 | 14 | 0,93 |
| DN 25 | 1″ | 115 | 16 | 85 | 4 | 14 | 1,14 |
| DN 32 | 1-1/4″ | 140 | 16 | 100 | 4 | 18 | 1,66 |
| DN 40 | 1-1/2″ | 150 | 16 | 110 | 4 | 18 | 1,85 |
| DN 50 | 2″ | 165 | 18 | 125 | 4 | 18 | 2,60 |
| DN 65 | 2-1/2″ | 185 | 18 | 145 | 4 | 18 | 3,34 |
| DN 80 | 3″ | 200 | 20 | 160 | 8 | 18 | 4,30 |
| DN 100 | 4″ | 220 | 20 | 180 | 8 | 18 | 5,29 |
| DN 125 | 5″ | 250 | 22 | 210 | 8 | 18 | 7,71 |
| DN 150 | 6″ | 285 | 22 | 240 | 8 | 23 | 9,95 |
| DN 200 | 8″ | 340 | 24 | 295 | 12 | 23 | 15,63 |
| DN 250 | 10″ | 405 | 26 | 355 | 12 | 27 | 24,14 |
| DN 300 | 12″ | 460 | 28 | 410 | 12 | 27 | 33,82 |
| DN 350 | 14″ | 520 | 30 | 470 | 16 | 27 | 46,60 |
| DN 400 | 16″ | 580 | 32 | 525 | 16 | 30 | 61,85 |
| DN 450 | 18″ | 640 | 32 | 585 | 20 | 30 | 75,48 |
| DN 500 | 20″ | 715 | 34 | 650 | 20 | 33 | 100,26 |
| DN 600 | 24″ | 840 | 36 | 770 | 20 | 36 | 146,93 |
| JIS 5 K FF BLIND | |||||||
| Size | Flange | Drilling | Weight | ||||
| mm | inch | D | T | K | Bolt No. | H | Kg / Pc |
| DN 15 | 1/2″ | 80 | 9 | 60 | 4 | 12 | 0,32 |
| DN 20 | 3/4″ | 85 | 10 | 65 | 4 | 12 | 0,41 |
| DN 25 | 1″ | 95 | 10 | 75 | 4 | 12 | 0,52 |
| DN 32 | 1-1/4″ | 115 | 12 | 90 | 4 | 15 | 0,92 |
| DN 40 | 1-1/2″ | 120 | 12 | 95 | 4 | 15 | 1,00 |
| DN 50 | 2″ | 130 | 14 | 105 | 4 | 15 | 1,39 |
| DN 65 | 2-1/2″ | 155 | 14 | 130 | 4 | 15 | 2,01 |
| DN 80 | 3″ | 180 | 14 | 145 | 4 | 19 | 2,69 |
| DN 100 | 4″ | 200 | 16 | 165 | 8 | 19 | 3,68 |
| DN 125 | 5″ | 235 | 16 | 200 | 8 | 19 | 5,19 |
| DN 150 | 6″ | 265 | 18 | 230 | 8 | 19 | 7,51 |
| DN 200 | 8″ | 320 | 20 | 280 | 8 | 23 | 12,17 |
| DN 250 | 10″ | 385 | 22 | 345 | 12 | 23 | 19,35 |
| DN 300 | 12″ | 430 | 22 | 390 | 12 | 23 | 24,35 |
| DN 350 | 14″ | 480 | 24 | 435 | 12 | 25 | 33,17 |
| DN 400 | 16″ | 540 | 24 | 495 | 16 | 25 | 41,90 |
| DN 450 | 18″ | 605 | 24 | 555 | 16 | 25 | 52,98 |
| DN 500 | 20″ | 655 | 24 | 605 | 20 | 25 | 61,98 |
| DN 550 | 22″ | 720 | 26 | 665 | 20 | 27 | 81,22 |
| DN 600 | 24″ | 770 | 26 | 715 | 20 | 27 | 93,23 |
