Material: Mild Steel, SS304, SS316 Stainless Steel
Type: 5K, 10K, 20K, 40K
Standart, Non Standart

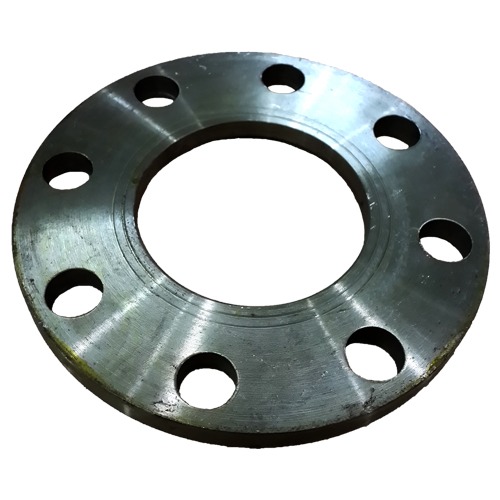

Jual Flange JIS
PT Karindo Abadi Makmur jual Flange JIS dengan harga murah dan berkualitas. Dapatkan penawaran harga terbaik untuk produk Flange JIS dengan menghubungi kontak marketing PT Karindo Abadi Makmur sekarang. Konsultasikan setiap kebutuhan Anda mengenai produk yang tersedia di website seperti Flange JIS dari harga, stok, material dan tipe yang dibutuhkan.
| JIS 5 K | ||||||||
| Size | Flange | Drilling | Weight | |||||
| mm | inch | D | A | T | K | Bolt No. | H | Kg / Pc |
| DN 15 | 1/2″ | 80 | 22,2 | 9 | 60 | 4 | 12 | 0,30 |
| DN 20 | 3/4″ | 85 | 27,7 | 10 | 65 | 4 | 12 | 0,36 |
| DN 25 | 1″ | 95 | 34,5 | 10 | 75 | 4 | 12 | 0,45 |
| DN 32 | 1-1/4″ | 115 | 43,2 | 12 | 90 | 4 | 15 | 0,78 |
| DN 40 | 1-1/2″ | 120 | 49,1 | 12 | 95 | 4 | 15 | 0,83 |
| DN 50 | 2″ | 130 | 61,1 | 14 | 105 | 4 | 15 | 1,06 |
| DN 65 | 2-1/2″ | 155 | 77,1 | 14 | 130 | 4 | 15 | 1,49 |
| DN 80 | 3″ | 180 | 90 | 14 | 145 | 4 | 19 | 1,98 |
| DN 100 | 4″ | 200 | 115,4 | 16 | 165 | 8 | 19 | 2,36 |
| DN 125 | 5″ | 235 | 141,2 | 16 | 200 | 8 | 19 | 3,21 |
| DN 150 | 6″ | 265 | 166,6 | 18 | 230 | 8 | 19 | 4,42 |
| DN. 200 | 8″ | 320 | 218 | 20 | 280 | 8 | 23 | 6,28 |
| DN 250 | 10″ | 385 | 269,5 | 22 | 345 | 12 | 23 | 9,45 |
| DN 300 | 12″ | 430 | 321 | 22 | 390 | 12 | 23 | 10,30 |
| DN 350 | 14″ | 480 | 358,1 | 24 | 435 | 12 | 25 | 14,09 |
| DN 400 | 16″ | 540 | 409 | 24 | 495 | 16 | 25 | 17,01 |
| DN 450 | 18″ | 605 | 460 | 24 | 555 | 16 | 25 | 21,49 |
| DN 500 | 20″ | 655 | 511 | 24 | 605 | 20 | 25 | 23,12 |
| DN 550 | 22″ | 720 | 562 | 26 | 665 | 20 | 27 | 30,30 |
| DN 600 | 24″ | 770 | 613 | 26 | 715 | 20 | 27 | 32,65 |
| JIS 10 K FF FLANGE | ||||||||
| mm | inch | D | A | T | K | Bolt No. | H | Kg / PC |
| DN 15 | 1/2″ | 95 | 22,2 | 12 | 70 | 4 | 15 | 0,57 |
| DN 20 | 3/4″ | 100 | 27,7 | 14 | 75 | 4 | 15 | 0,72 |
| DN 25 | 1″ | 125 | 34,5 | 14 | 90 | 4 | 19 | 1,13 |
| DN 32 | 1-1/4″ | 135 | 43,2 | 16 | 100 | 4 | 19 | 1,48 |
| DN 40 | 1-1/2″ | 140 | 49,1 | 16 | 105 | 4 | 19 | 1,56 |
| DN 50 | 2″ | 155 | 61,1 | 16 | 120 | 4 | 19 | 1,87 |
| DN 65 | 2-1/2″ | 175 | 77,1 | 18 | 140 | 4 | 19 | 2,59 |
| DN 80 | 3″ | 185 | 90 | 18 | 150 | 8 | 19 | 2,59 |
| DN 100 | 4″ | 210 | 115,4 | 18 | 175 | 8 | 19 | 3,11 |
| DN 125 | 5″ | 250 | 141,2 | 20 | 210 | 8 | 23 | 4,75 |
| DN 150 | 6″ | 280 | 166,6 | 22 | 240 | 8 | 23 | 6,33 |
| DN 200 | 8″ | 330 | 218 | 22 | 290 | 12 | 23 | 7,51 |
| DN 250 | 10″ | 400 | 269,5 | 24 | 355 | 12 | 25 | 11,88 |
| DN 300 | 12″ | 445 | 321 | 24 | 400 | 16 | 25 | 12,65 |
| DN 350 | 14″ | 490 | 358,1 | 26 | 445 | 16 | 25 | 16,42 |
| DN 400 | 16″ | 560 | 409 | 28 | 510 | 16 | 27 | 23,38 |
| DN 450 | 18″ | 620 | 460 | 30 | 565 | 20 | 27 | 29,43 |
| DN 500 | 20″ | 675 | 511 | 30 | 620 | 20 | 27 | 33,47 |
| DN 550 | 22″ | 745 | 562 | 32 | 680 | 20 | 33 | 43,13 |
| DN 600 | 24″ | 795 | 613 | 32 | 730 | 24 | 33 | 45,66 |
